Features

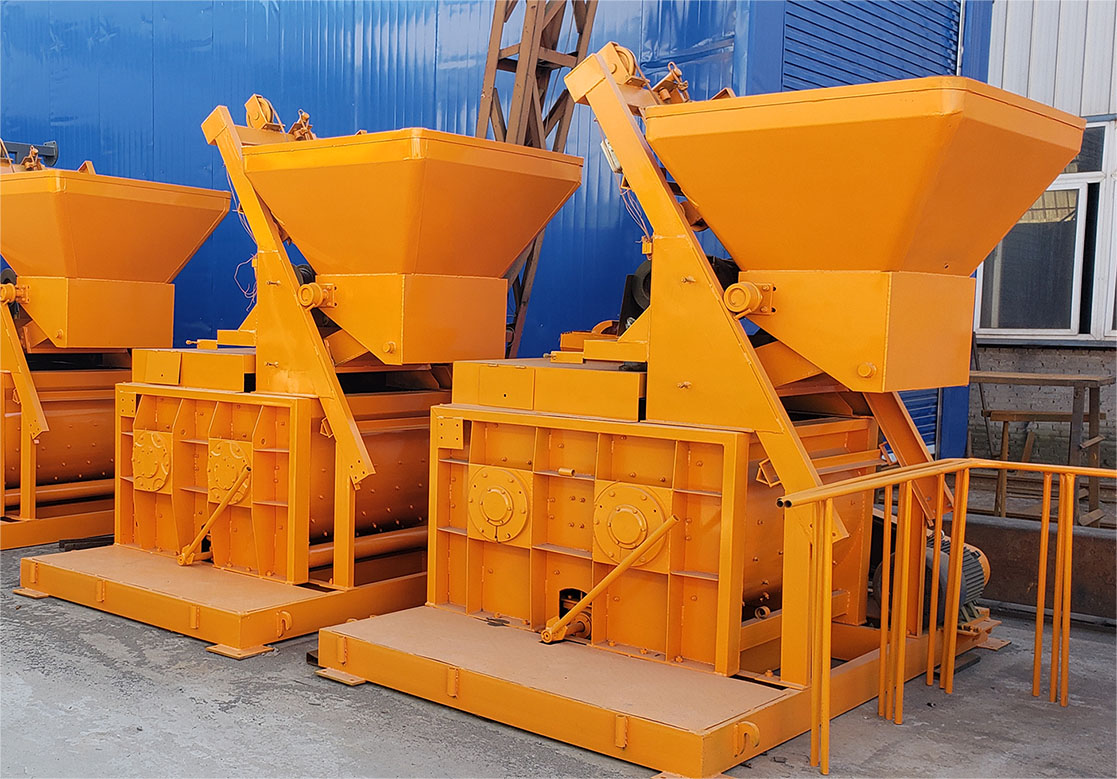

750 concrete mixer is a double-horizontal shaft forced mixer, which has the dual advantages of single independent operation and simple concrete mixing station with PLD series batching unit, and can also provide a supporting host for mixing station. It is a high-efficiency model, which is widely used. The product design structure is reasonable, the layout is novel, easy to use and maintenance. Users can use their own bucket trucks, dump trucks, mixing trucks, and can be reformed according to the special requirements of users to meet the needs of users.
Working Rrinciple:

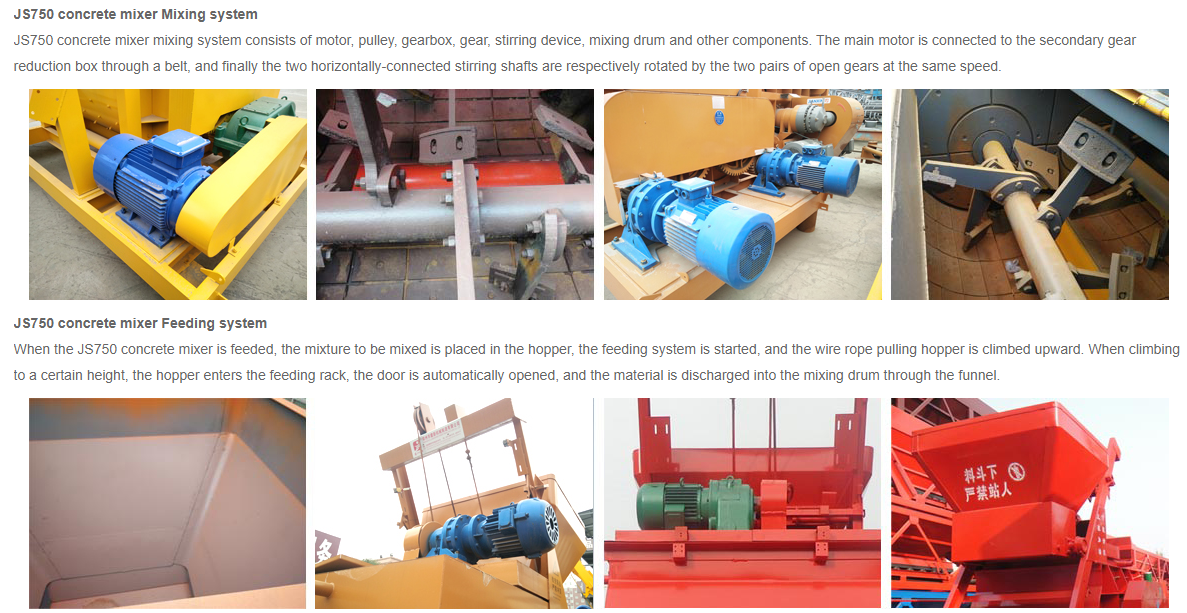

JS750 can be combined with different types of PLD series batching units into simple concrete mixing station and double concrete mixing station. It can also be used as the main machine of mixing station. It can mix dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars. The forced mixer comprises a planetary stirring mechanism, a vortex
stirring mechanism, a stirring shaft, a discharge mechanism, a discharge port, a stirring frame and a bottom frame, etc.
Product Advantages:
1. Stir evenly several groups of mixing blades in the circular groove mixing cylinder are staggered, so that the mixture is fully stirred in the cylinder, and the mixture is quickly and evenly stirred.
2. Compact structure JS750 concrete mixer discharge door is driven by imported hydraulic system, compared with the traditional driving form, it has the characteristics of compact structure, smooth operation, accurate opening position and so on.
3. Beautiful appearance JS750 concrete mixer uses classic yellow as the color of the product, noble and stable.
4. Good sealing JS750 concrete mixer adopts three seals, aggregate frame seal and hydraulic system to supply oil pump, which can effectively prevent the main neck shaft from being rapidly worn and resulting in slurry leakage.
5. Short cycle time General mixer blade speed of 26 RPM, JS750 mixer speed
of 29.3 RPM.
6. Easy to operate JS750 concrete mixer whether it is feeding, unloading, or water supply, it adopts a high degree of automation, and all the motor control parts are in the electric box, safe and reliable use, easy operation and maintenance.
Technical Data:
Project | Discharge capacity | Feed capacity | Theoretical productivity | Maximum granule of aggregate （Lithotripsy/Pebble） | Speed of mixing blade | Power of agitator | Improve motor power | Pump motor power | Shape size （Length, width and height） | |
JS750 | 750L | 1200L | ≤35m³/h | ≤40/60 | 31（R/min） | 2×7（number） | 30KW | 7.5KW | 1.1KW | 5025×3100 ×5680 |
