Features

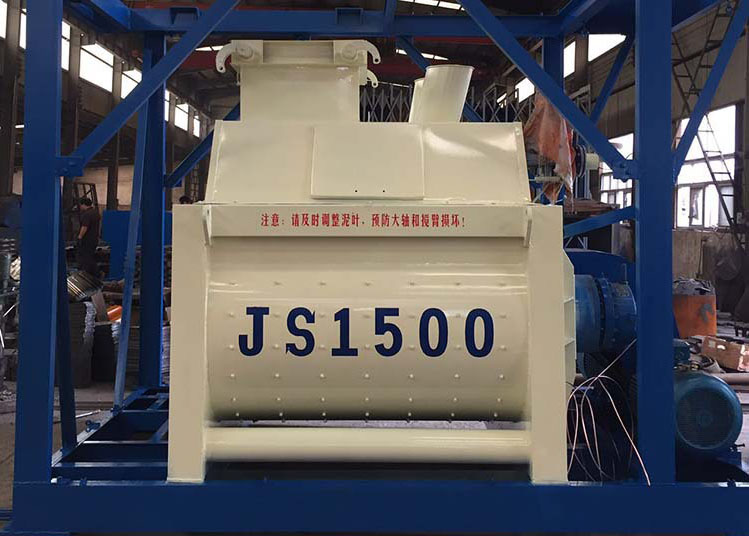

JS1500 concrete mixer is a large and medium-sized mixer, mainly suitable for larger construction projects. It is a type of forced horizontal shaft mixer and is a multifunctional mixer. It's not only mixing dry hard concrete but also mixing lightweight aggregate concrete. JS1500 Concrete Mixer has the dual advantages of separate operation and can integreted with the PLD series batching machine to form a concrete mixing plant.
Working Rrinciple:
The design structure of the product is reasonable, the layout is novel, and the use and maintenance are convenient. In the mixing process, the rotary movement of the mixing shaft drives the mixing blade to shear, squeeze and reverse the mixing of the material in the cylinder, so that the material can be fully mixed in the relatively intense movement, so it has the advantages of good mixing quality, low energy consumption and high efficiency.
Product Advantages:
JS1500 concrete mixer has the dual advantages of separate operation and PLD series batching unit into concrete mixing station. It can mix dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars. The design structure of the product is reasonable, the layout is novel, and the use and maintenance are convenient. In the mixing process, the rotary movement of the mixing shaft drives the mixing blade to shear, squeeze and reverse the mixing of the material in the cylinder, so that the material can be fully mixed in the relatively intense movement, so it has the advantages of good mixing quality, low energy consumption and high efficiency.
Technical Data:
Project | Discharge capacity | Feed capacity | Theoretical productivity | Maximum granule of aggregate （Lithotripsy/Pebble） | Speed of mixing blade | Power of agitator | Improve motor power | Pump motor power | Shape size （Length, width and height） | |
JS1500A | 1500L | 2400L | ≤90m³/h | ≤60/80 | 19.5（R/min） | 2×8（number） | 2×22KW | YEZ160L-4Project 15KW | 50DWB20-8A 2.2KW | 4720×2200 ×3000 |
