Features

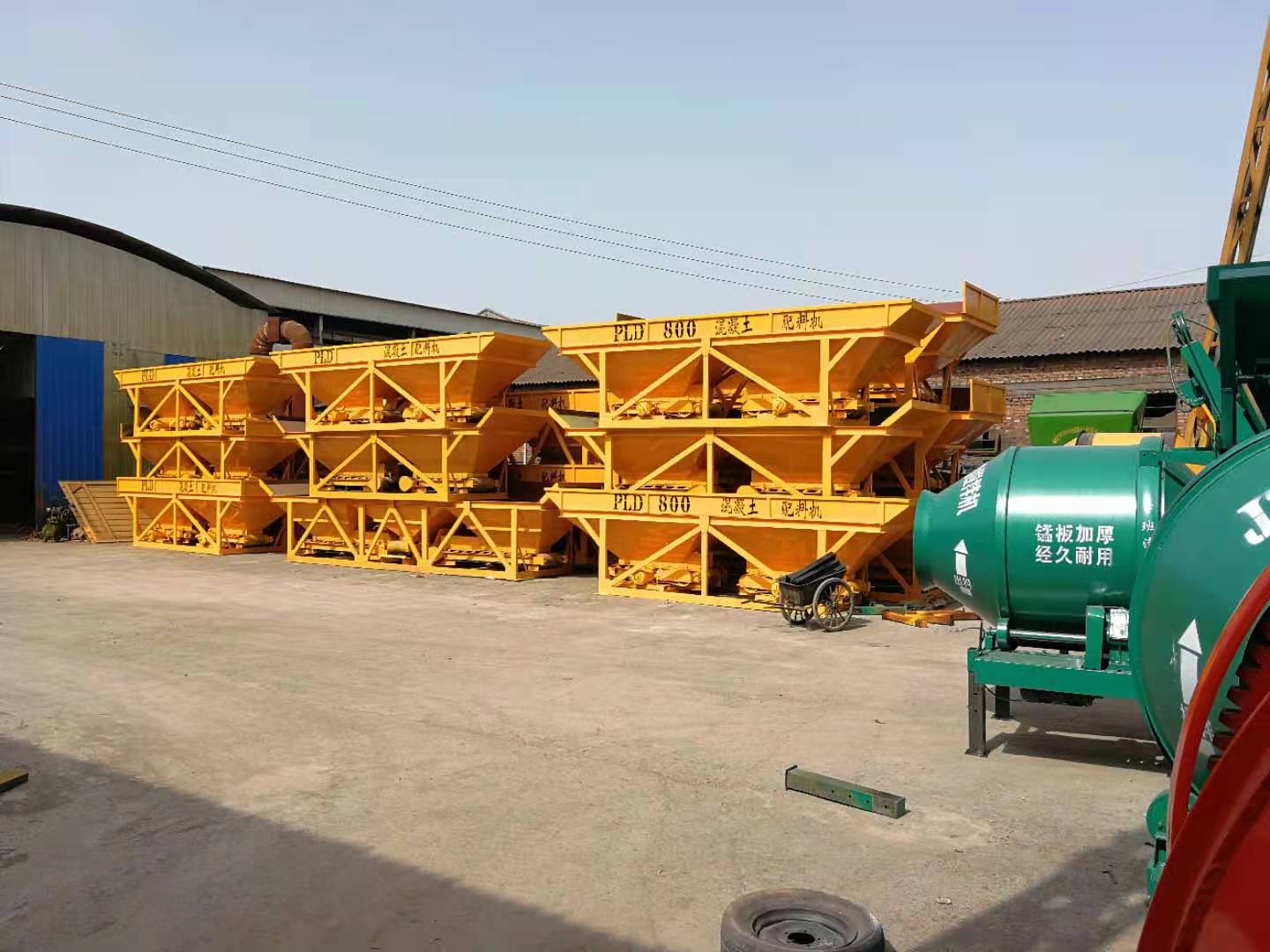

　　PLD800 sand and gravel batching machine weighing bucket capacity is 800L, storage hopper capacity is 2 cubic meters, productivity is 48 cubic meters per hour, batching accuracy is ±2%; The maximum weighing value is 2000Kg; The equipment coarse and fine weighing, weighing precision is high; Excellent performance weighing sensor, accurate and stable weighing; The overall structure is reasonable, the stiffness is strong and beautiful; Smooth transport, to ensure the normal feed, is the ideal choice of concrete mixing plant batching equipment.

5b99508c7dca372 (1)

Working Rrinciple:

　　PLD800 sand and gravel batching machine produced by Enhong Machinery is divided into two types: 2 bin batching machine and 3 bin batching machine. The equipment adopts electronic weighing system and weight control instrument and sensor, which can quantify, batching and control materials and automatically modify the drop. The machine has the advantages of reasonable arrangement, compact structure, convenient operation, accurate ingredients, reliable control, etc., and can be used with various types of mixers and other metering devices, and can be combined into automatic and semi-automatic mixing equipment.

Product Advantages:

　　PLD800 sand and gravel batching machine produced by Enhong Machinery is divided into two types: 2 bin batching machine and 3 bin batching machine. The equipment adopts electronic weighing system and weight control instrument and sensor, which can quantify, batching and control materials and automatically modify the drop. The machine has the advantages of reasonable arrangement, compact structure, convenient operation, accurate ingredients, reliable control, etc., and can be used with various types of mixers and other metering devices,and can be combined into automatic and semi-automatic mixing equipment

Technical Data:

model	Weighing hopper capacity （L）	Storage hopper capacity （m³）	productivity （m³/h）	Batching accuracy	Weighing value （kg）	Number of ingredients	Feeding height （mm）	Feeding belt speed （m/s）	power （kw）	Total capacity （kg）	Overall dimension (length * width * height) （mm）
PLD800	800L	2×1.5m³	48m³/h	±2%	2000	2-3species	2400	3	3×3	2450	6000×2000 ×3020
PLD1200	1200L	4×2.5m³	56m³/h	±2%	3000	2-4species	3000	1	5×3	4500	9500×2200× 3260
PLD1600	1600L	4×5m³	75m³/h	±2%	3000	2-5species	2900	1	5×3	5600	12000×2200× 3260
PLD2400	2400L	4×10m³	120m³/h	±2%	4000	2-5species	2900	1.6	11	85000	10000×3000× 4000
PLD3200	3200L	4×18m³	160m³/h	±2%	5000	2-5species	2300	1.6	11	10500	14500×3000× 4600
PLD4800	4800L	4×25m³	160m³/h	±2%	8000	2-5species	2300	1.25	11	14000	15520×3900× 5090
