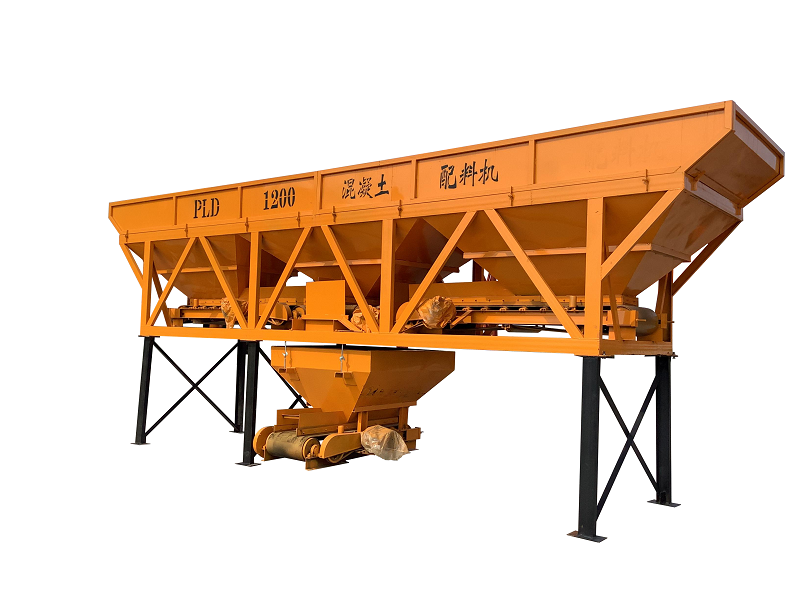

PLD1200 concrete batching machine

　　PLD1200 concrete batching machine is a kind of front desk automatic batching machine which can be used with mixer. Divided into one-way and two-way, it looks at the concrete ratio designed by the user to automatically complete the sand, stone, cement and other two to four materials (secondary concrete) dosing procedures.

　　PLD1200 concrete batching machine is used in various scale autoclaved fly ash brick or lime sand brick production line. It can effectively ensure the accuracy of batching and improve productivity. The mechanism is simple, reliable, easy to operate and maintain. Because the measurement is accurate, it can effectively ensure the quality of fly ash or lime sand brick. PLD series concrete batching machine is a new type of batching machine, suitable for general construction sites, roads, Bridges and other projects.

　　PLD1200 concrete batching function effectively ensures the accuracy of the mix ratio of cement, sand, stone, etc., and the electronic weighing system further improves the accuracy of the weighing. The top panel of the batching machine developed by us can be reduced or removed as needed, which can greatly reduce the labor intensity of the feeding part and increase the convenience of construction.

model	Weighing hopper capacity （L）	Storage hopper capacity （m³）	productivity （m³/h）	Batching accuracy	Weighing value （kg）	Number of ingredients	Feeding height （mm）	Feeding belt speed （m/s）	power （kw）	Total capacity （kg）	Overall dimension (length * width * height) （mm）
PLD800	800L	2×1.5m³	48m³/h	±2%	2000	2-3species	2400	3	3×3	2450	6000×2000 ×3020
PLD1200	1200L	4×2.5m³	56m³/h	±2%	3000	2-4species	3000	1	5×3	4500	9500×2200× 3260
PLD1600	1600L	4×5m³	75m³/h	±2%	3000	2-5species	2900	1	5×3	5600	12000×2200× 3260
PLD2400	2400L	4×10m³	120m³/h	±2%	4000	2-5species	2900	1.6	11	85000	10000×3000× 4000
PLD3200	3200L	4×18m³	160m³/h	±2%	5000	2-5species	2300	1.6	11	10500	14500×3000× 4600
PLD4800	4800L	4×25m³	160m³/h	±2%	8000	2-5species	2300	1.25	11	14000	15520×3900× 5090
