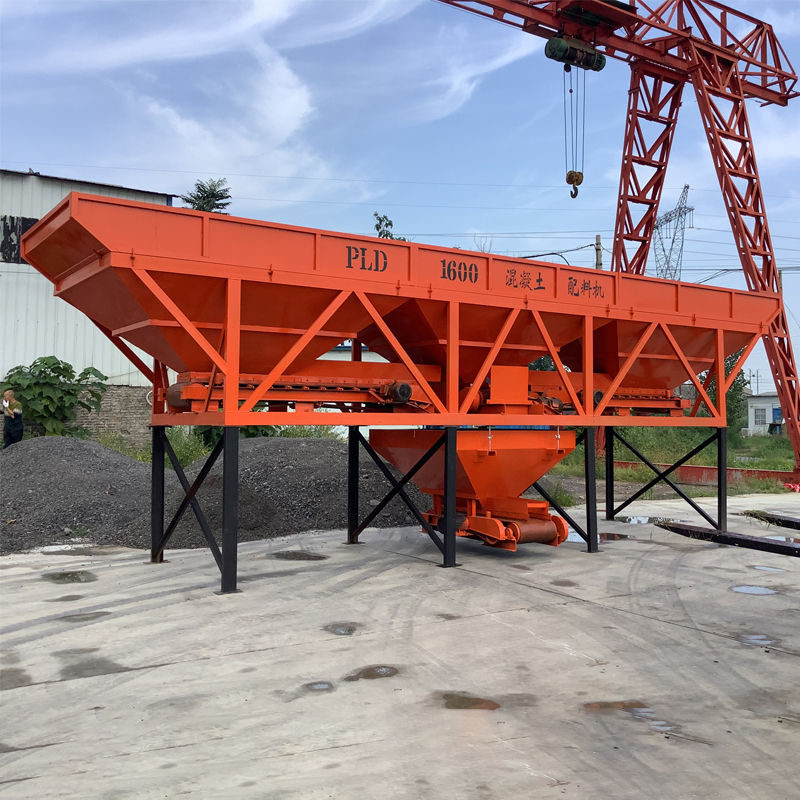

PLD1600 concrete batching machine

　　PLD1600 concrete batching machine is a kind of front desk automatic batching machine which can be used with mixer. Divided into one-way and two-way, it looks at the concrete ratio designed by the user to automatically complete the sand, stone, cement and other two to four materials (secondary concrete) dosing procedures. PLD1600 concrete batching machine is divided into 2 bin batching machine and 3 bin batching machine two kinds of products using electronic weighing, microcomputer control, digital display, wired remote control operation, with accurate weighing, high batching precision, fast speed, strong control function, easy operation and other advantages.

　　1. Quality assurance sufficient supply, large production scale, products are guaranteed.

　　2. Convenient and practical products are guaranteed from the details, easy to operate, high quality to provide excellent experience.

　　3. Excellent service to provide excellent service, after-sales protection.

　　4. Mature technology Mature technology, standardized business operation, to bring good experience to customers.

　　5. Green environmental protection Energy saving, green environmental protection.

model	Weighing hopper capacity （L）	Storage hopper capacity （m³）	productivity （m³/h）	Batching accuracy	Weighing value （kg）	Number of ingredients	Feeding height （mm）	Feeding belt speed （m/s）	power （kw）	Total capacity （kg）	Overall dimension (length * width * height) （mm）
PLD800	800L	2×1.5m³	48m³/h	±2%	2000	2-3species	2400	3	3×3	2450	6000×2000 ×3020
PLD1200	1200L	4×2.5m³	56m³/h	±2%	3000	2-4species	3000	1	5×3	4500	9500×2200× 3260
PLD1600	1600L	4×5m³	75m³/h	±2%	3000	2-5species	2900	1	5×3	5600	12000×2200× 3260
PLD2400	2400L	4×10m³	120m³/h	±2%	4000	2-5species	2900	1.6	11	85000	10000×3000× 4000
PLD3200	3200L	4×18m³	160m³/h	±2%	5000	2-5species	2300	1.6	11	10500	14500×3000× 4600
PLD4800	4800L	4×25m³	160m³/h	±2%	8000	2-5species	2300	1.25	11	14000	15520×3900× 5090
