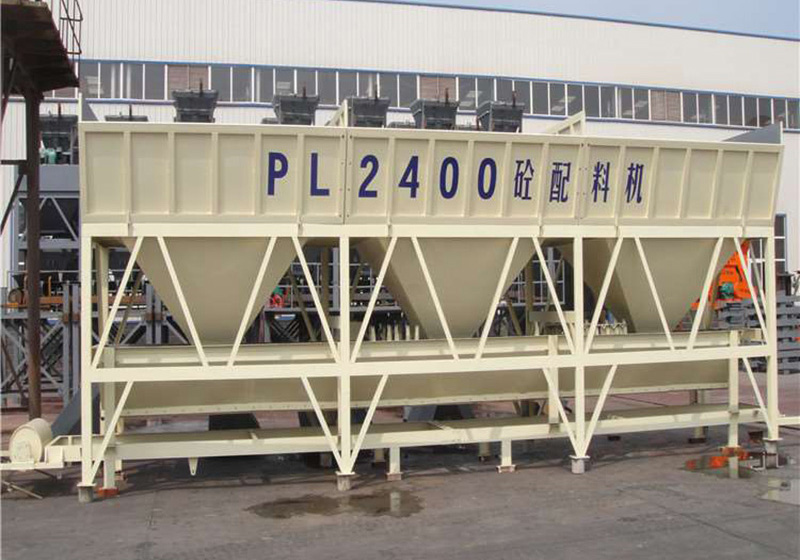

PLD2400 concrete batching machine

　　Concrete batching machine, batching machine, sand and gravel automatic batching machine, is a kind of material for a variety of materials such as: The automatic equipment of quantitative distribution of sand and gravel is mainly used in mixing station and concrete construction industry to replace manual scale or volume measurement, which has the characteristics of high measurement accuracy, high distribution efficiency and high degree of automation, and is one of the main parts of the complete set of equipment of automatic concrete mixing station.

　　1. Head-up belt scale design, reduce the loading height, save civil construction costs;

　　2. Customized control system according to industry needs, easy to use;

　　3. The overall structure is reasonable, the stiffness is good, and the appearance is classic;

　　4. Can weigh 4 kinds of aggregates at the same time, weighing time is short, high efficiency.

model	Weighing hopper capacity （L）	Storage hopper capacity （m³）	productivity （m³/h）	Batching accuracy	Weighing value （kg）	Number of ingredients	Feeding height （mm）	Feeding belt speed （m/s）	power （kw）	Total capacity （kg）	Overall dimension (length * width * height) （mm）
PLD800	800L	2×1.5m³	48m³/h	±2%	2000	2-3species	2400	3	3×3	2450	6000×2000 ×3020
PLD1200	1200L	4×2.5m³	56m³/h	±2%	3000	2-4species	3000	1	5×3	4500	9500×2200× 3260
PLD1600	1600L	4×5m³	75m³/h	±2%	3000	2-5species	2900	1	5×3	5600	12000×2200× 3260
PLD2400	2400L	4×10m³	120m³/h	±2%	4000	2-5species	2900	1.6	11	85000	10000×3000× 4000
PLD3200	3200L	4×18m³	160m³/h	±2%	5000	2-5species	2300	1.6	11	10500	14500×3000× 4600
PLD4800	4800L	4×25m³	160m³/h	±2%	8000	2-5species	2300	1.25	11	14000	15520×3900× 5090
