Features
The theoretical productivity of the HZS90 concrete mixing plant is 90m3/h, which is also called a 1.5-yard mixing plant. This is an economical mixing equipment that is based on the advantages and advanced technologies of the company's mixing plant and mixing plant. This series of mixing stations guarantees Under the premise of engineering efficiency, the maximum savings of capital, and equipment reliability; modular structure design, make installation, demolition more convenient, safe, comfortable, reliable, product mixing effect is good, high production efficiency. The system is safe and reliable and easy to maintain. The concrete mixing plant, which can be used in large-scale projects, is also applied in medium-sized projects. It is a widely used mixing station equipment and is applicable to roads, airports, ports, hydropower and other large-scale projects and prefabricated components, and commercial concrete. The production of such large quantities of concrete is widely used in various engineering constructions.
Working Rrinciple:

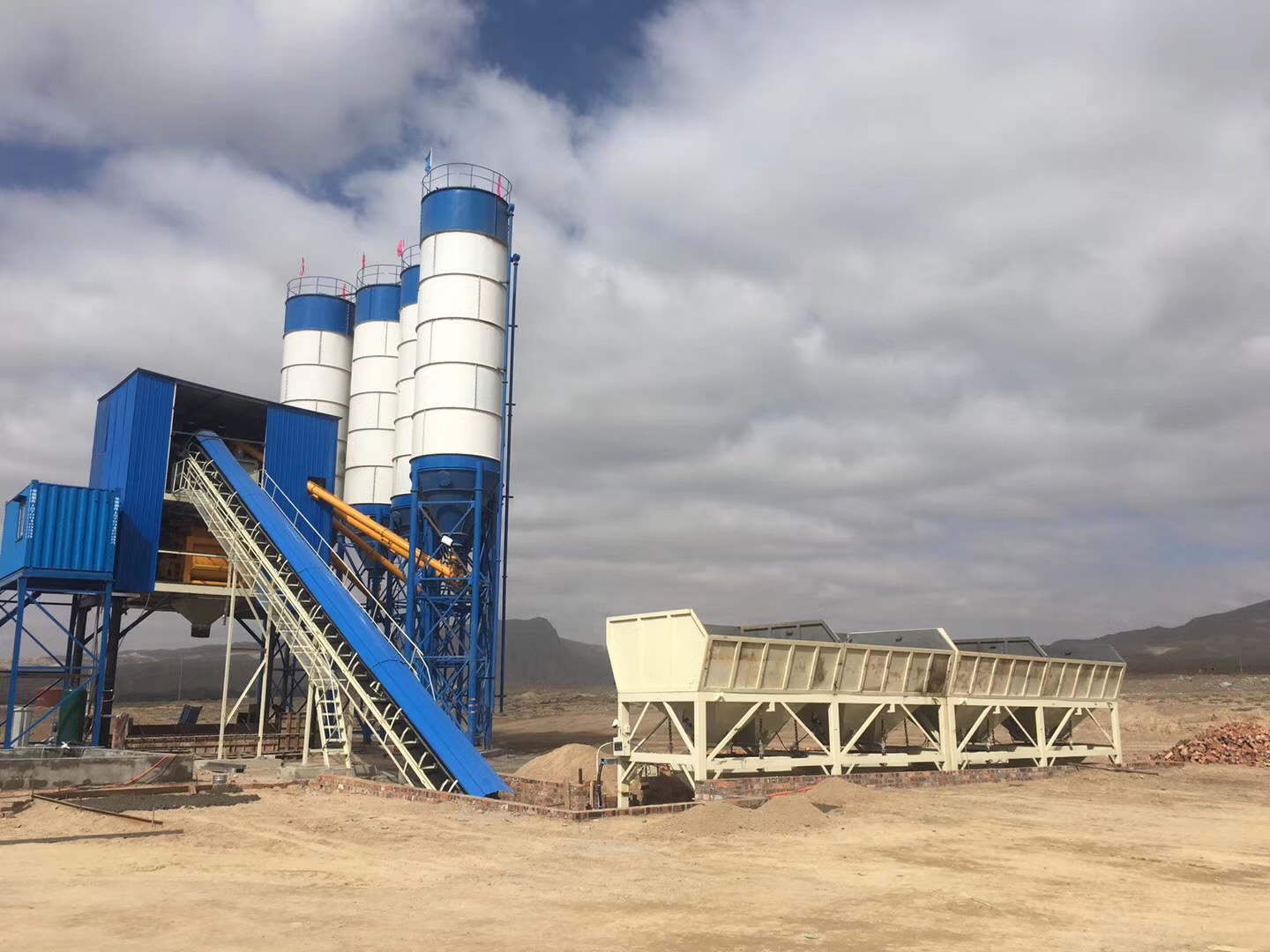

The whole set of equipment adopts the combined structure, the whole machine installation and relocation is very convenient. Type 90 concrete mixing plant adopts JS1500 compulsory mixer, which has good mixing quality and high efficiency. Aggregate batching using PLD2400 concrete batching machine, loading machine, electronic weighing, accurate measurement, aggregate using inclined belt conveyor material, there is an aggregate storage bucket above the mixing tank, can store a can of aggregate reserve; Cement (or fly ash and other powder) by the cement warehouse storage, screw conveyor transport, cement weighing measurement; Water is stored by water tank or reservoir, water pump water supply, water metering; The liquid admixture is stored in the admixture storage tank and then pumped to the admixture for measurement.
Product Advantages:
The whole process of batching, mixing and discharging is fully controlled by the electronic control system. The control system has: automatic, semi-automatic and manual control of the batching process and no disturbance switching between these three working modes; Automatic peeling, automatic drop compensation; Report printing; Boot self-test and alarm function; Control parameter operation authority management; Computer management of formulations, contracts, raw materials, vehicles and drivers; Television monitoring; Simple and intuitive dynamic process display and a series of technologies. Control system using imported components, safe and reliable work, control room insulation effect is good, air conditioning, a full set of concrete mixing station cost-effective.
Technical Data:
project | Maximum productivity | Mixer model | Batcher model | Discharge height | Working cycle time | Weighing accuracy | |||
HZS90 | 90m3/h | JS1500B | PLD2400 | 4100（mm） | 60（S） | aggregate 2% | cement 1% | water 1% | Additives 1% |
