Features

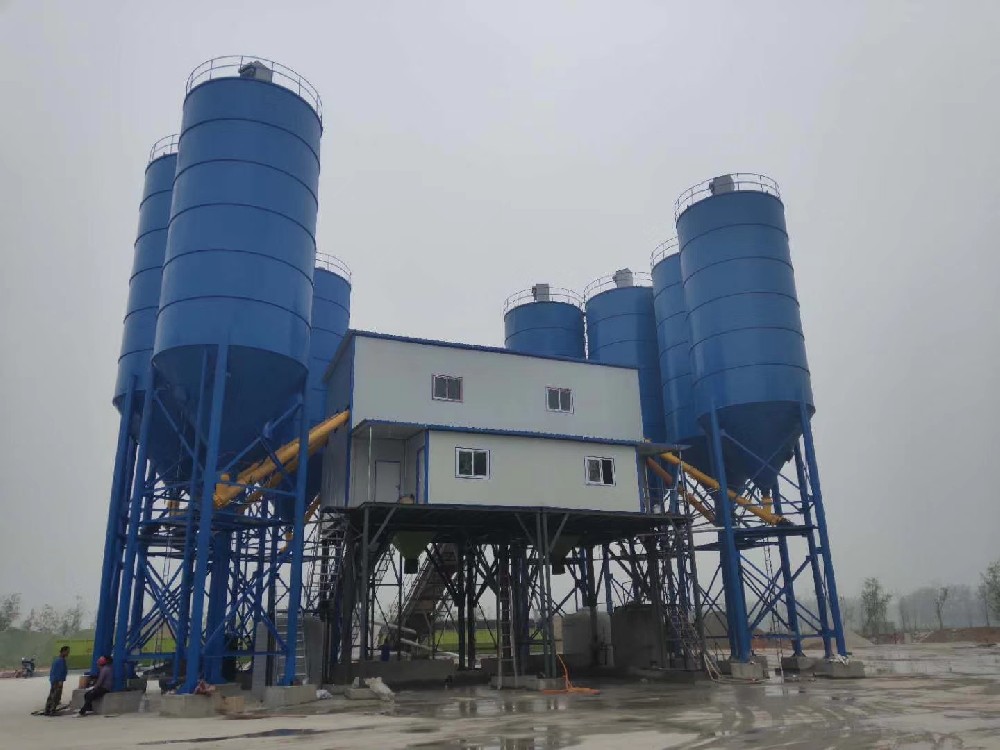

HZS120 concrete mixing station, the entire set of equipment including two-position forced shaft mixer, batching machine, cement warehouse and screw conveyor, conveyor belt, computer control room. The JS2000 twin-shaft forced mixer is a compulsory, high-efficiency equipment that can produce a variety of concrete such as plastic and dry hard concrete. It has high production efficiency, short mixing time, and beautiful appearance. It is widely used in construction of large and medium-sized buildings and roads. Bridges and precast plants for the production of concrete products are ideal equipment for the production of commercial concrete. The estimated productivity of the concrete mixing plant is 120m3/h, the power of the mixing master is 74KW, the nominal capacity of the mixer is 2000L, the number of bins of the batching machine is 4 cells, the batching capacity is 3200L, 3×100t, and the capacity of the silo is measured. Accuracy (0 ~ 1200) ± 1% kg, admixture weighing range and accuracy (0 ~ 50) ± 1% kg, aggregate weighing accuracy of ± 2%, unloading height of 3.8 meters, the total installed power is 179.5KW to meet production requirements.
Working Rrinciple:
The aggregate is discharged into the aggregate metering bucket by the unloading door of the bone bin of the batching station for measurement. After the measurement is completed, the aggregate is unloaded onto the far-rotating flat belt, which is sent to the inclined belt machine, which is transported to the waiting hopper at the upper part of the mixer for instruction. Meanwhile, cement and fly ash are transported to their respective metering buckets by the screw conveyor for measurement. Water and admixtures are respectively sent to the respective metering bucket by the pump and admixture pump for measurement, after the measurement of various materials, the control system issued instructions to begin to feed into the mixer for mixing, after the completion of mixing, open the discharge door of the mixer, the concrete is unloaded into the mixing transport through the discharge hopper, and then enter the next working cycle.
Product Advantages:
1. Modular structure, the whole machine installation, relocation is very convenient, low equipment cost. The concrete mixer adopts JS2000 (JS2000B) type double horizontal shaft forced concrete mixer with good mixing quality and high efficiency. The aggregate is batched by the batching machine, which has accurate measurement and high production efficiency. The ingredients of cement, water and liquid admixtures are measured by electronic balance with high precision. The water supply system adopts the principle of pump pressurization, so that the
water flow rate is accelerated, and the uniform aggregate is sprayed and fed with belt conveyor, which has long life and high working efficiency. The main components of the electrical control system are all imported, reliable performance, easy operation, printing function, with air conditioning.
2. The overall appearance is generous, easy to install and disassemble, each layer of outer packaging side can be opened, easy to repair, replace parts; All material scales use independent measurement, one scale one table, improve the measurement accuracy; The aggregate lifting belt machine is adopted. The outside-hanging decelerating mechanism runs smoothly, has strong power and is easy to maintain. All powder in the conveying, metering, putting process are in a closed state, completely eliminate dust emissions all parts of the use of reliable performance, smooth transmission mechanism, effectively reduce noise; The main mixing building and belt machine are all environmentally friendly packaging, which further reduces dust and noise pollution.
3. Advanced control system, the use of batching control instrument, batching stability, advanced calculation methods, effective control error; With fault diagnosis system, can guide and help users troubleshoot; The storage and call of formula is flexible, and any formula can be called at any time.
Technical Data:
project | Maximum productivity | Mixer model | Batcher model | Discharge height | Working cycle time | Weighing accuracy | |||
HZS120 | 120m3/h | JS2000 | PLD3200 | 4100（mm） | 72（S） | aggregate 2% | cement 1% | water 1% | Additives 1% |
