Features

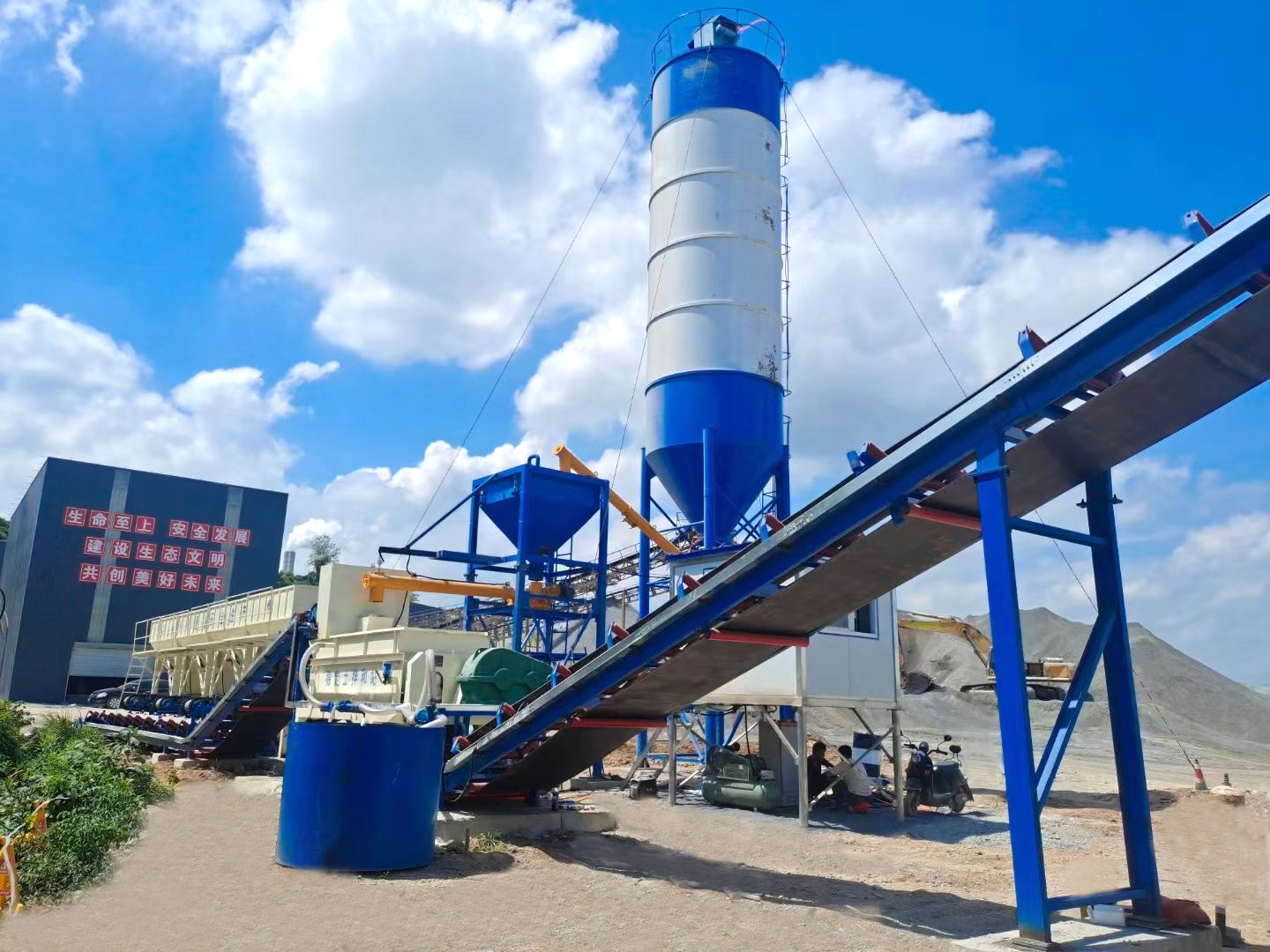

The made WBZ300 Stabilized Soil Mixing Station (mixing plant) production line is an economical and practical stable soil mixing plant with an output of 300 tons per hour and is widely adapted to high-grade highways, urban roads, airstrips, and piers. Base materials such as sports grounds are needed for construction. The product structure is mature, the specifications are complete, the performance quality is stable and reliable. Since its since 1991, it has enjoyed a high reputation in the market with its strong technical foundation, superior product quality, satisfactory customer service, and products throughout the country. It shares the nearly 80% of the market . And it’s exported to Philippines. Afghanistan. Africa and other countries.
Working Rrinciple:
WBZ300 stabilized soil mixing station is a volumetric measurement variable frequency speed regulating stabilized soil mixing station, the stabilized soil mixing station equipment is an economic and practical stabilized soil mixing equipment, rated productivity of 400 tons per hour, the use of computer dynamic and measurement (or volume measurement), with accurate measurement, high productivity, stable performance and quality. The mixing station is suitable for continuous operation with large flow rate, and is mainly used for mixing the basic stable materials of constructing high-grade highways, urban roads, airports, ports and other projects.
Product Advantages:
1, WBZ300 stabilized soil mixing station (mixing station) host adopts double horizontal shaft continuous unlined plate mixer, easy maintenance, uniform mixing, high production efficiency.
2, ingredients using electronic weighing or volume measurement, accurate and reliable measurement, the ratio changes rapidly. Computer control system can implement the whole process management, manual, automatic selection, easy to operate, good reliability.
3. Speed regulation adopts internationally advanced variable frequency stepless speed regulation mode or electromagnetic speed regulation mode to fully ensure the reliability of equipment operation.
4, water supply with intelligent turbine flowmeter, accurate calculation, intuitive display.
5, aggregate, finished material conveyor with seamless vulcanized joint ring tape or large Angle waveform belt, compact structure, smooth operation, reliable, not easy to run off, effectively improve the service life of the belt.
6, the bone bin adopts modular or modular combination, flexible, suitable for different levels of demand.
Technical Data:
Project | Maximum productivity | Measurement method | Speed regulation mode | control mode | Quantify precision | Power | Weight | |||
WBZ300 | 300t/h | Volume measurement Computer measurement | frequency control Electromagnetic speed regulation | automatic | Manual | aggregate | Powder | water | 102.7kw | 39t |
