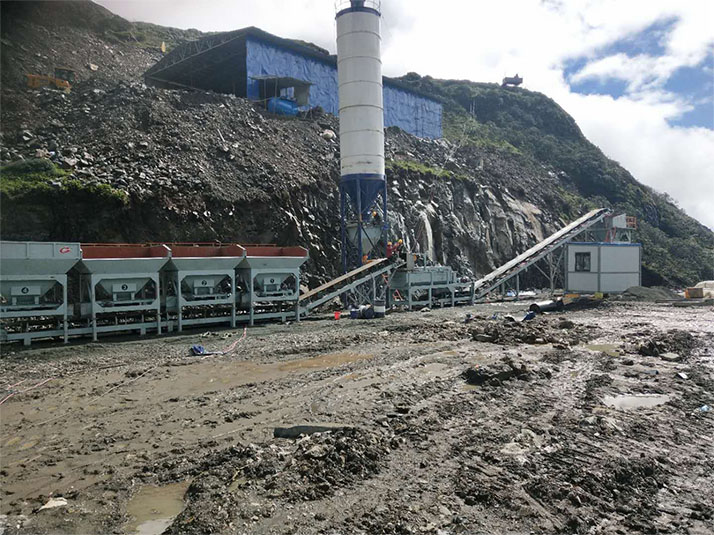

WBZ400 Stabilized Soil Mixing Plant

　　The WBZ400 Stabilized Soil Mixing Station (mixing station) uses a twin-shaft continuous liner-less mixing machine for easy maintenance, even mixing, and high production efficiency. The ingredients are electronically weighed or volume-measured, the measurement is accurate and reliable, and the ratio changes rapidly. The computer control system manages the entire process, with manual and automatic selection, convenient operation and good reliability. Speed adoption of international advanced frequency control or electromagnetic speed control will save energy, stepless speed, and fully guarantee the reliability of equipment operation. Intelligent turbine flowmeter for water supply, accurate calculation, intuitive display. Aggregate and finished material conveyor adopts seamless vulcanized joint ring tape or large angled wave rib belt, which is compact in structure, stable in operation, reliable in operation, not easy to deviate, and effectively improves the service life of the belt. Aggregate bins are modular or modular, flexible and suitable for different levels of demand.

　　1, the equipment can mix cement stabilized soil, lime stabilized soil, sandstabilized soil and other basic stable materials.

　　2, the equipment is suitable for high-grade highway, airport, railway,municipal construction, the production of a variety of different specificationsof stable soil base materials.

　　3, the use of no liner plate double horizontal shaft forced mixing host, so that the material in the "boiling" state of rapid advancement, high productivity, uniform mixing production process continuous stability, and no need to replace the liner, long service life, low maintenance costs.

　　4, single motor drive reducer, big gear synchronous transmission, stable and reliable work, shock vibration resistance, strong anti-overload ability, long service life.

　　5, the unique form of water supply, to ensure that the water supply is uniform, stable and effective, water mist can effectively reduce dust pollution, effectively remove stable soil agglomeration.

　　6, the special powder big mouth screw feeder to avoid the previous impeller feeder moisture easily blocked phenomenon, so that the dust measurement is more reliable, stable, uniform and continuous, can effectively reduce the waste of powder and scrap finished materials, stable material cost control.

　　7, a variety of powder supply forms can be selected: manual unpacking cement or bulk cement can be used, or bucket elevator.

　　8, the use of computer speed regulation or frequency conversion electronic speed regulation, the material supply is uniform and continuous and reliable, strong anti-interference ability, accurate ratio, simple operation.

　　9, the system has: shutdown, boot process management and status detection function, fault alarm and overload alarm and undervoltage protection function, manual, semi-automatic, automatic various forms of operation, can store ratio, output and other data, and can output and print statistical reports. It provides strong support for site management, scheduling and monitoring.

　

Project	Maximum productivity	Measurement method	Speed regulation mode	control mode		Quantify precision			Power	Weight
WBZ300	300t/h	Volume measurement Computer measurement	frequency control Electromagnetic speed regulation	automatic	Manual	aggregate ±3%（volume）、±2%（Electronics）	Powder ±2%（volume）、±1%（Electronics）	water -1~2%	102.7kw	39t
