Features

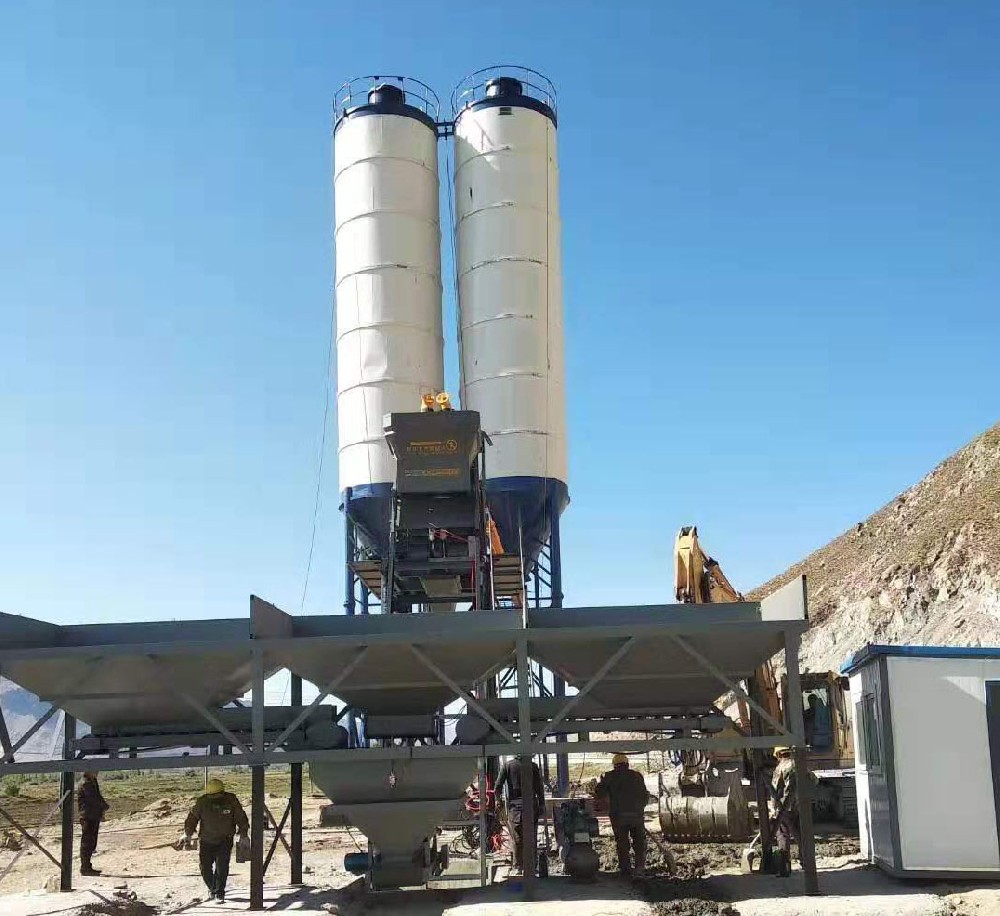

The brand WBZ600 Stabilized Soil Mixing Station production line adopts a forced continuous twin-shaft type in the form of agitation. It can mix gravel and stabilize soil and lime soil to stabilize soil. It is suitable for construction of highways, Class I highways, Class II highways, urban roads, airports, sports fields and other basic materials. It can use quicklime, hydrated lime (water content 10-15%), soil, Raw materials such as gravel, fly ash, and cement are used to produce base materials such as ash. Unlike common ram mixing plants, new users need special attention.
Working Rrinciple:
The working principle of the stabilized soil mixing station is: Various selected materials such as lime, crushed sand, soil particles, fly ash, etc. are loaded into the hopper of the batching machine by the loader, measured by the belt feeder and sent to the belt aggregate machine. At the same time, the stabilizer such as lime, cement and other powder are fed into the powder storage bin by various ways, fed into the metering hopper by the screw conveyor, measured by the powder feeder and sent to the belt aggregate machine. All kinds of bone powder are sent by the aggregate machine to the finished stabilized soil which is mixed by the feeding belt machine to the hopper of the mixing storage bin for temporary storage and replacement.
Product Advantages:
1, WBZ600 stabilized soil mixing station (mixing station) host adopts double horizontal shaft continuous unlined plate mixer, easy maintenance, uniform mixing, high production efficiency.
2, ingredients using electronic weighing or volume measurement, accurate and reliable measurement, the ratio changes rapidly. Computer control system can implement the whole process management, manual, automatic selection, easy to operate, good reliability.
3. Speed regulation adopts internationally advanced variable frequency stepless speed regulation mode or electromagnetic speed regulation mode to fully ensure the reliability of equipment operation.
4, water supply with intelligent turbine flowmeter, accurate calculation, intuitive display.
5, aggregate, finished material conveyor with seamless vulcanized joint ring tape or large Angle waveform belt, compact structure, smooth operation, reliable, not easy to run off, effectively improve the service life of the belt.
6, the bone bin adopts modular or modular combination, flexible, suitable for different levels of demand.
Technical Data:
Project | Maximum productivity | Measurement method | Speed regulation mode | control mode | Quantify precision | Power | Weight | |||
WBZ600 | 600t/h | Volume measurement Computer measurement | frequency control Electromagnetic speed regulation | automatic | Manual | aggregate | Powder | water | 170.5kw | 54t |
