Features

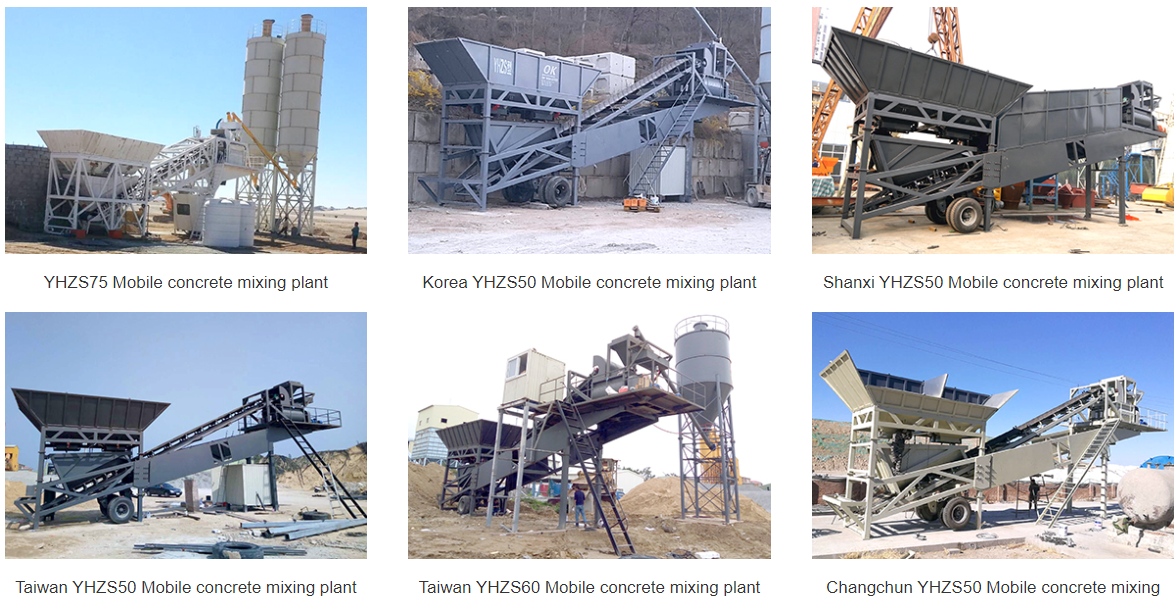

The mobile mixing plant is a movable concrete mixing plant equipment. Through clever design, the batching system, weighing system, mixing host, storage, unloading and automatic control system of mixing station are concentrated in a towing unit, and the movement of mixing station is realized by trailer. YHZS25 mobile mixing plant can reach the output of 25 square meters of concrete per hour, and has the advantages of flexible movement, simple and fast disassembly, stable performance, etc. It is the preferred model for field engineering construction such as railways, highways, ports, Bridges, hydropower projects.
Working Rrinciple:
Mobile mixing station is a concrete mixing equipment developed according to the actual needs of users who need frequent transfer, short construction period and long construction line. It concentrates the material storage, weighing, conveying, mixing, unloading and automatic control system of traditional concrete mixing station in a towing unit. On top of the function of the complete concrete mixing station, there are advantages such as convenient movement, flexible disassembly, and simple storage management.
Product Advantages:
1. Compact structure, almost all the processes of concrete production are concentrated on the tow hanging unit
2. Humanized man-machine operation interface, reliable working performance, can still run stably in a variety of harsh environments
3. Double horizontal shaft forced mixer, strong continuous operation ability, comprehensive stirring track, strong stirring movement, stirring fast and uniform
4. The complete set of equipment can be quickly transported to the construction site and assembled on site through the full-hanging form, and can be constructed without debugging.
5. High degree of automation, strong mobility, simple operation, good stability.
6. Solid structure, compact and reasonable space layout to ensure flexibility and production capacity.
7. The mobile mixing station occupies a small area and is convenient to move, which greatly reduces the amount of basic works.
Technical Data:
project | Theoretical productivity | Mixer | Batching machine | Conveyer capacity of belt conveyer | Drag speed | Wheelbase (lateral) | Turning radius | Total power | Unloading height |
YHZS25 | 25m³/h | JS750 | PLD800 | 200 | 15 | 2800 | 11 | 35 | 4.0 |
