Features

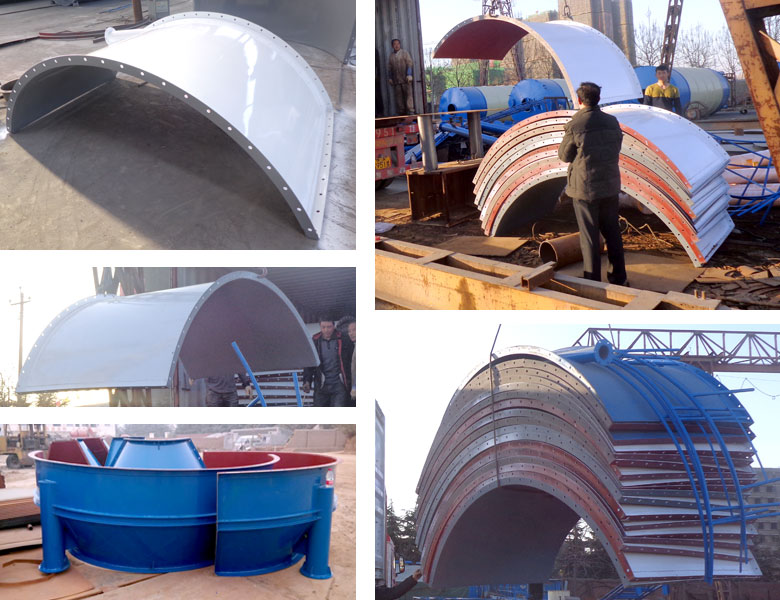

The schistose sheet cement silo equipment information and product description: Our company provides all kinds of volume and tonnage of sheet cement silo, cement silo suitable for store grain, cement, fly ash and all kinds of bulk material.The tank is equipped with a material level system that can display the position of the material. The schistose sheet cement silo and slice cement silo are solve export loading, make barrels on-site, transfer on the construction site, ultra-high-wide transportation many difficult problem. Cement silo (cement tank) are accordance with industry standards. Discharge height have 1.96 meters, 4.2 meters, Accept OEM as the customers requirements.
Working Rrinciple:
Sheet cement silo, sheet cement silo for cement silo export packing difficulties, difficulties in the field of barrel making, site transfer difficulties, transportation of super high width and many other problems. Cement silos (cement tanks) are in line with industry standards. The unloading height is 1.96 meters, 4.2 meters, can also be processed according to user requirements.
Product Advantages:
1.Dusting system: Top of cement silo is equipped with electric dusting device, which can effectively adsorb suspended particles in the silo and reduce the surrounding environment pollution.
2.Breaking arch device: The cement silo have equipped with an air-blast arch-breaking device at the lower cone. The small electromagnetic directional valve in the air control box is used to control the release of compressed air to break the arch of cement and various powders to avoid the powder heap and Cause blockage.
Technical Data:
Model | capacity(T) | diameter(m) | height(m) | Leg height (m) | weight(t) | Mixer Model | Type of screw conveyer |
JX-50 | 50 | 3 | 6.5 | 2/4.5 | 2.7 | JS500 | LSY180 |
JX-60 | 60 | 3 | 7.8 | 2/4.5 | 3.2 | JS500 | LSY180 |
JX-80 | 80 | 3 | 9 | 2/4.5 | 3.8 | JS750 | LSY219 |
JX-100 | 100 | 3 | 12.8 | 2/4.5 | 4.2 | JS1000 | LSY273 |
JX-150 | 150 | 3.3 | 13.5 | 2/4.5 | 5.8 | JS1500 | LSY325 |
