Features

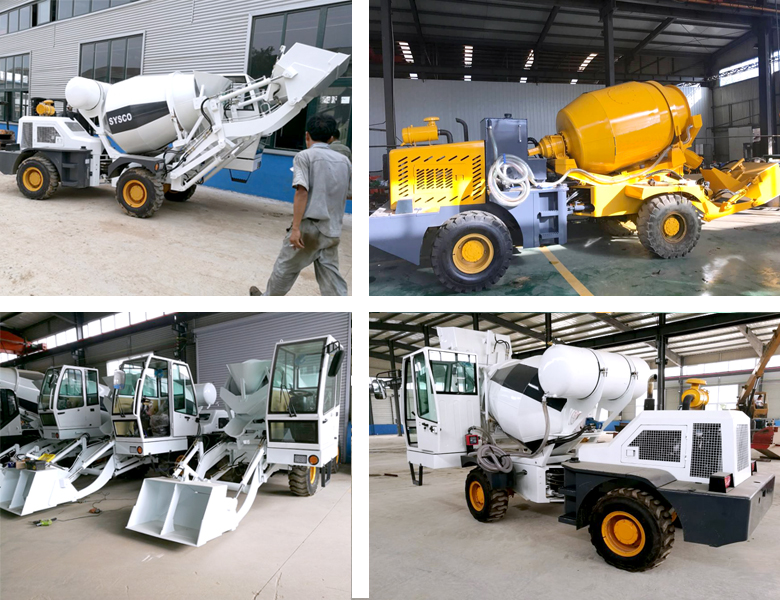

2.5 Square self loading concrete mixer is a kind of concrete mixing equipment that combines the functions of a concrete transport truck and a concrete mixing station. It is used for loading, metering, stirring, and discharging concrete, and can realize concrete transportation and on-site concrete construction operations. . The equipment greatly improves production efficiency and reduces production time and costs.
Working Rrinciple:
2.5 Square self loading concrete mixer is a kind of concrete mixing equipment that combines the functions of a concrete transport truck and a concrete mixing station.
Product Advantages:
2.5 Square self loading concrete mixer is a kind of concrete mixing equipment that combines the functions of a concrete transport truck and a concrete mixing station.
Technical Data:
type | parameter |
Chassis Model | HLZGD3-2000 |
Type performance | Mobile, self loading, mixing, transportation |
Function | Wet (or dry) mixing of concrete, mortar, chemical fertilizer, feed and other bulk materials can unload the material to the destination. |
Production function | Four wheel steering |
Engine | Cummins 4 cylinder 2200 turn / minute, 92KW. cold turbocharging |
Walking speed | 22.4 km / h low speed 6.5 km / h |
Oil consumption | Idle state 2L-3L, working state 6L-8L. |
Wheelbase | 2000mm |
Wheelbase | 1833mm |
Tires | 10.00－20（ Engineering machine tires ）4only |
Agitator | The geometric volume was 5 cubic meters, and the mixing volume was 3 cubic meters. |
Spiral blade in tank | The double helix is stirred together with the helix to make the stirring material more uniform. Left-handed material with right-handed material. |
Inclination of stirred tank | 16 degrees |
Unloading tank | The height of discharge trough is 1.6 meters (extension), the parallel steering speed is less than 3 R / min, and the steering angle is 300 degrees. |
Chute | The adjusting angle is matched with 3 side sliding grooves, which can be disassembled to increase the discharge length and adjust the angle hydraulic pressure. |
A scraper bucket | 600 liters of capacity |
Shovel discharge | Hydraulic gate, electric control |
Joystick | Electronic control button four guide handle |
Walking hydraulics | Pump REXROTH (Italy Rexroth or homemade) |
motorREXROTH | |
ReducerFX300 | |
Water supply system | Water: hydraulic driven self suction pump. Rinse: high pressure water pump rinse |
High pressure washing car | Electronic high pressure water pump flushing |
Voltage | The battery is two 24V, 200A. |
Hydraulic oil tank | Capacity 300 litres, summer 68 hydraulic oil, winter No. 46 hydraulic oil, cold area with 35 hydraulic oil. Equipped with a liquid level meter. |
Tank volume | 300L |
Diesel tank volume | 112L |
Quality | Total quality 7000kg, total mass 14200kg |
Shape size | The length of walking is 5400 wide and 2530 high by 4300 |
