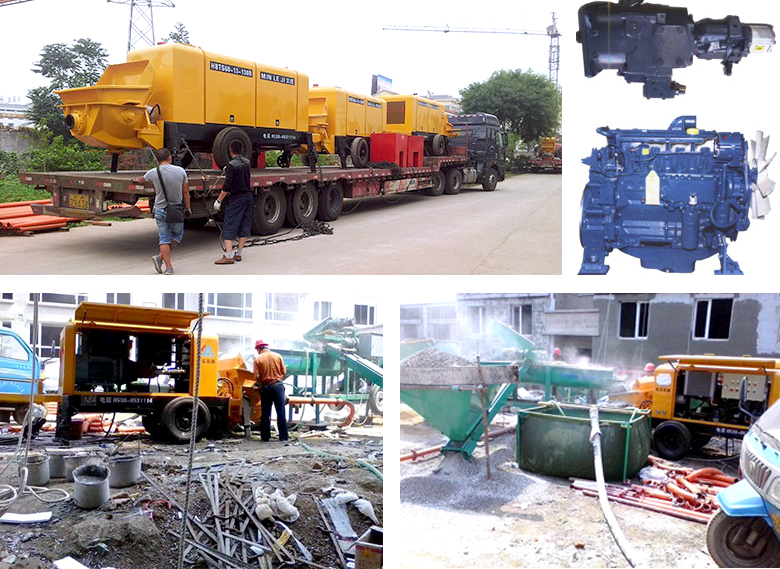

HBTS60-13 concrete pump

　　Fully enclosed electrical control box, protection control device can work in harsh conditions.The main electrical components used in France Schneider, Japan's Mitsubishi. (MITSUBISHI), Panasonic (Panasonlc) and other brands.Adopt PLC programmable, program controller simplifies the circuit, reliability and life expectancy improve significantly,and with fault display function, easy to troubleshoot

Wired remote control, safe and convenient operation.

　　The pumping oil circuit adopts non-contact automatic commutation and delay-time control to avoid commutation impact, and the commutation is accurate,stable and reliable. The hydraulic system is equipped with safety overflow protection and automatic pressure shut-off device for overpressureso that the main pump can achieve multiple levels of reliable protection.

　　The use of suction filter technology prevents foreign objects from entering the hydraulic circuit, greatly increasing the reliability of the system and greatly extending the service life of the system components. Independent forced air cooling to ensure the oil temperature is lower than 60°C

Theoretical concrete output	m3/h	75/46
Theoretical pump pressure	MPa	13/7
Aggregate size	mm	Pebble≤50    Lithotripsy≤40
power	KW	Diesel engine130    Diesel engine145
speed	r/min	2300
Pump cylinder bore / stroke	mm	￠125/1600
Concrete cylinder diameter / stroke	mm	￠200/1600
High and low voltage switching		有
Tank volume	L	500
Fuel tank volume	L	240
Hopper volume	m3	0.8
Height of feed	mm	1400
Theoretical transmission distance vertical / horizontal	m	270/1200
Pipeline cleaning method		washing
Shape size (long x wide x high)	mm	6000×2100×2260
Whole machine quality	kg	6200
